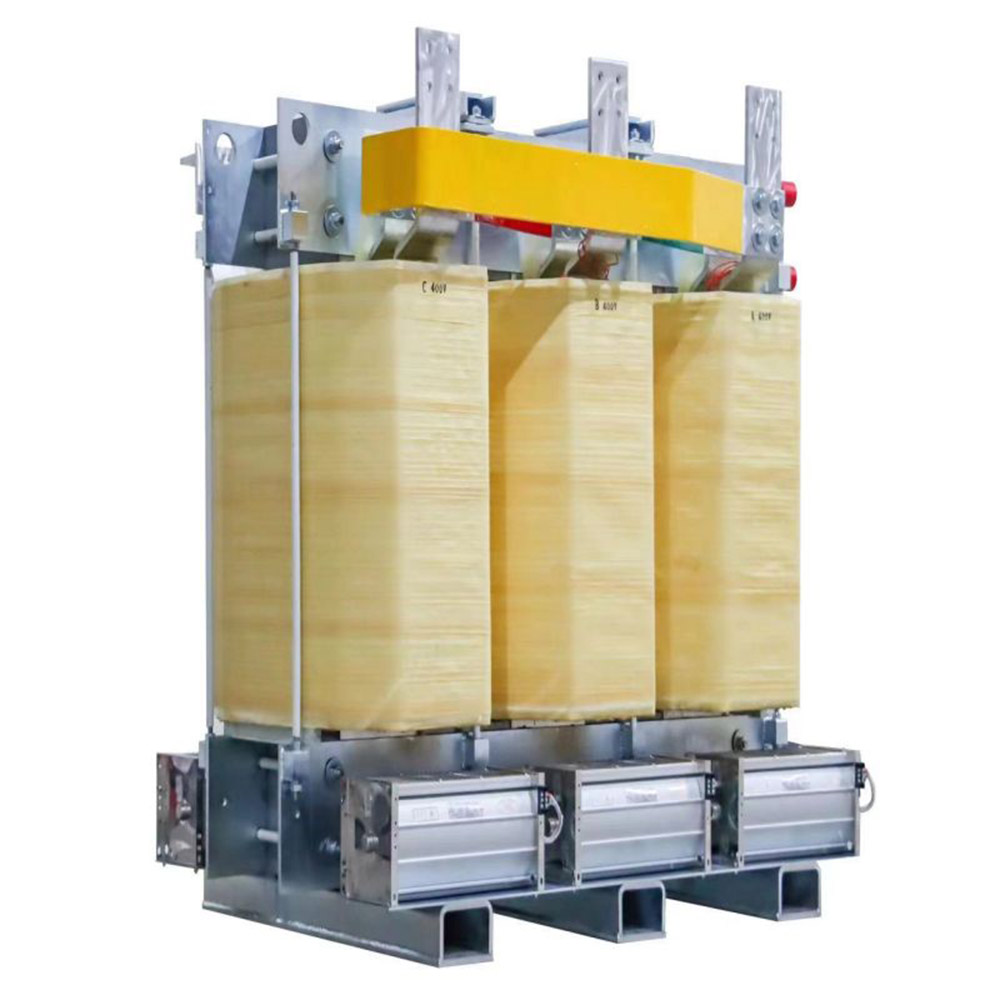

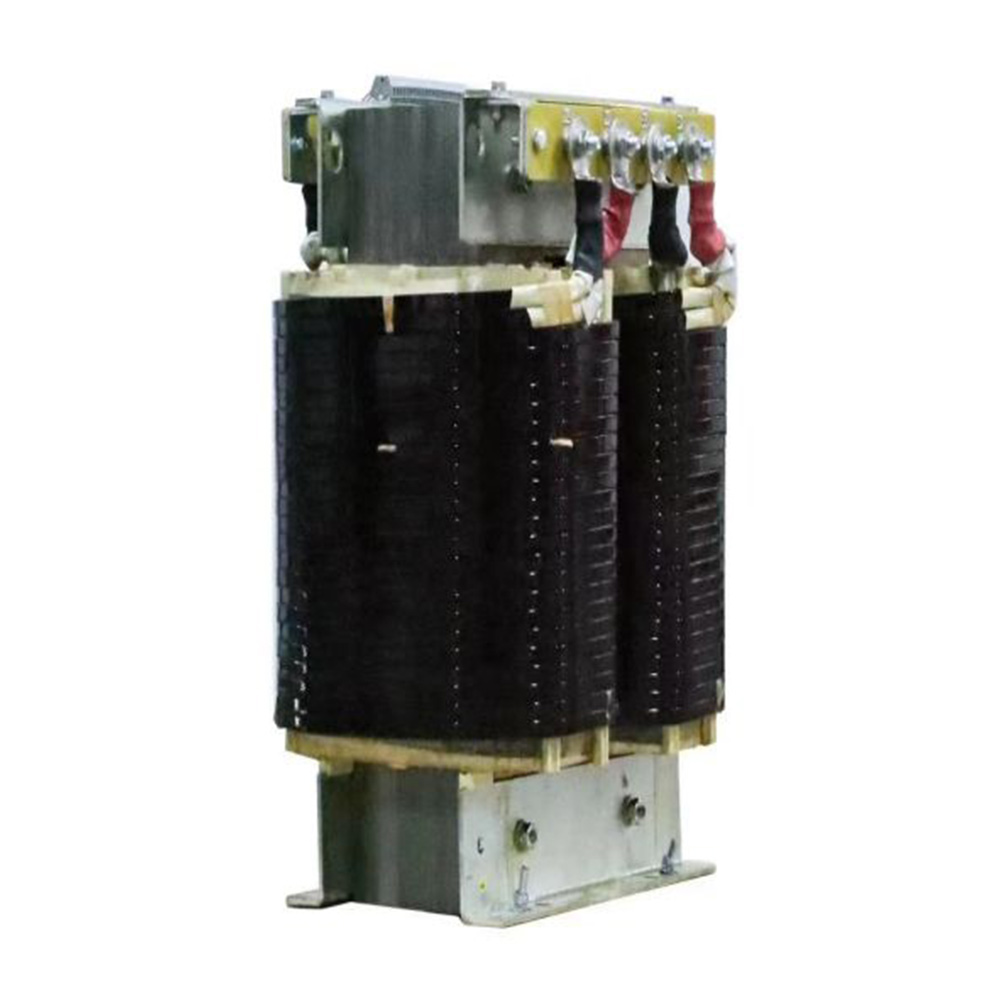

Dry-Type Transformers - Cast Resin
VE POWER INC offers premium Dry-Type Cast Resin Transformers designed for high reliability, safety, and environmental performance in both indoor and outdoor applications. With advanced vacuum epoxy resin casting technology, these transformers are flame-retardant, moisture-resistant, and require minimal maintenance—ideal for environments where oil-filled transformers are not permitted.
Key Features:
Voltage Ratings: Up to 35 kV primary / 600 V to 15 kV secondary
Power Ratings: From 100 kVA to 10 MVA
Cooling Type: AN / AF (Air Natural / Air Forced)
Winding Type: Cast epoxy resin encapsulated windings (LV: copper foil / HV: copper or aluminum wire)
Enclosure Options: IP00 (open), IP21–IP54 for indoor/outdoor use
Insulation Class: F or H (with temperature rise B or F)
Standards Compliance: IEEE C57.12, IEC 60076-11, CSA C9, UL Recognized
Fire Safety: Self-extinguishing, flame-retardant, non-toxic under fire (tested per IEC 60707)
Performance You Trust
Dry-Type Transformers - Cast Resin
Clean, safe, and highly reliable—VE Power’s Dry-Type Cast Resin Transformers are built for oil-restricted environments. With flame-retardant epoxy casting, moisture-resistant construction, and flexible indoor/outdoor enclosures, they deliver long-lasting, low-maintenance power across diverse applications.
